CNC Flat Bed Big Bore CNC turning lathe

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK61160

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 1600mm

Maximum Turning Diameter Over Carriage: 1250mm

Maximum Length Of Workpiece: 120dm

Maximum Weight Between Center: 40ton

Additional Info

Packaging: on request

Productivity: 3 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 3 set /month

Certificate: ISO9001

Product Description

Big bore cnc Turning Lathe Machine is suitable to machine shaft parts of gas turbines, rotor, rollers and other large high-precision.

Feature of Flat Bed Big Bore CNC turning lathe

1 Super audio quenched and accurate grinded workbench.

2 Spindle system has great rigidity, high accuracy, strong cutting force.

3 Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.

Technical specification of CNC Flat Bed Big Bore CNC turning lathe CK61160

1 Maximum swivel diameter on the bed 1600mm

2 Maximum turning diameter over carriage 1250mm

3 Maximum length of workpiece 80/100/120 dm

4 Maximum weight between center 20/40 t

5 Diameter of faceplate 1600mm

6 Maximum torque of faceplate 80KN.m

7 Range of spindle speeds r/min 1-200r/min

8 Maximum cutting force of carriage 80 KN

9 Range of feed rates ( long) 2-4500 mm/min

10 Range of feed rates( transverse ) 2-4500 mm/min

11 Rapid speed of of carriage( long) 4500 mm/min

12 Rapid speed of of carriage( transverse ) 4500 mm/min

13 Horizontal travel of tool post 675 mm

14 Travel of tailstock quill 300mm

15 Power of main motor 75KW

16 Machine weight(Approx) 100 t

17 Overall dimensions(L×W×H) 1500×490×275 cm

Photo of Flat Bed Big Bore CNC turning lathe for metal

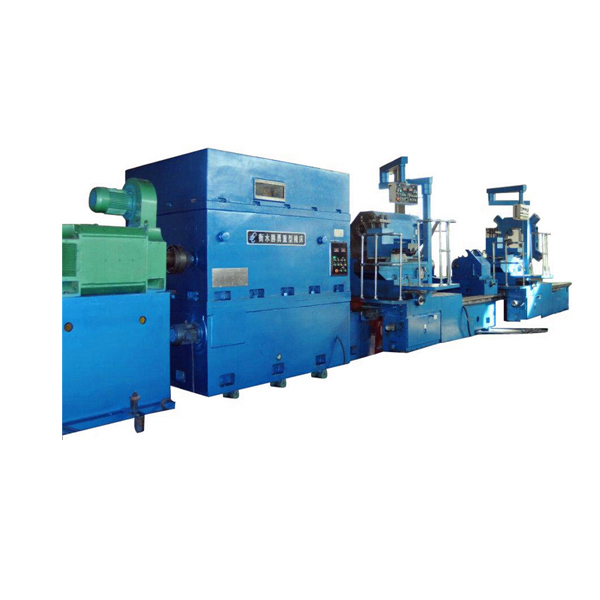

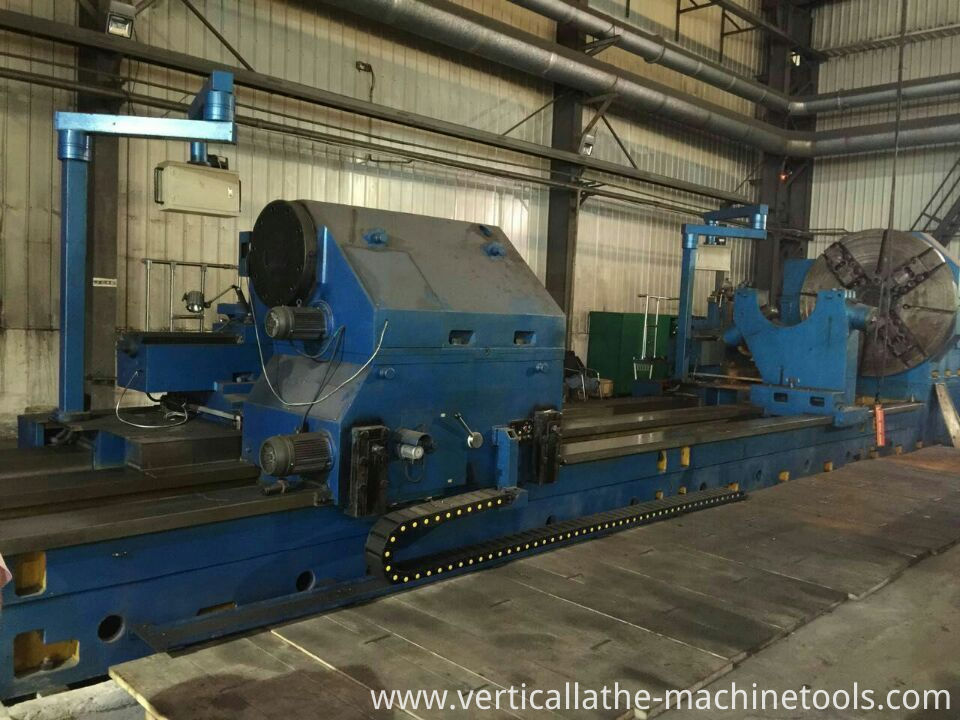

Cnc big bore latheBig Bore CNC Lathe



Looking for ideal Big Bore Metal CNC Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cnc Big Bore Lathes are quality guaranteed. We are China Origin Factory of Cnc Big Bore Lathe. If you have any question, please feel free to contact us.
