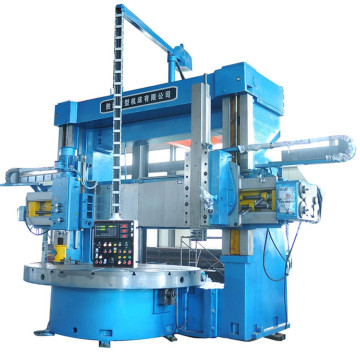

Double column 2 axis vertical lathes for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2250mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

This machine is a double column 2 axis Vertical Lathes for sale. 2 axis vertical lathe tool is suitable for the processing of large parts, small batches and large quantities of parts.2 axis vertical lathe tool is suitable for processing complex shape, rotary parts.Its biggest processing diameter is 2500mm, the maximum processing height reaches to 1600mm.

2 axis vertical lathes for sale can be processing inside and outside the cylindrical surface, inside and outside cone surface and the end surface.2 axis vertical lathe tool is suitable for roughing and finishing ferrous metal, nonferrous metal and some non-metal parts with high speed steel and carbide cutting tools.

Vertical Lathe Machine has wide application range, high efficiency, good precision stability, good parts size and easy operation. Vertical Lathe Machine can meet the requirements of high precision machining for single piece or batch product.
2 axis vertical lathe tool is a universal double-column vertical lathe with two turrets.Vertical lathe machine is commonly used in the metallurgical industry. Vertical lathe machine is generally used in various large parts of metallurgical industry.

2 axis vertical lathes for sale
Technical reference of double column 2 axis vertical lathes cnc type CK5225
Table diameter:φ2250mm
Maximum turning diameter:φ2500mm
Maximum height of workpiece:1600-2800mm
Maximum weight of workpiece:10/20Ton
Maximum cutting torque of table:63000N.m
Step of table rotation:Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step :Stepless speed regulation
Range of feed rates :0.1-1000 mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post:1400mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed:350mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55KW
Overall dimensions (L×W×H ):5180×4600×4952mm
Machine weight ( approx ):33-38ton

Single column and double column 2 axis vertical lathes for sale in workshop

2 axis vertical lathes for sale

2 axis vertical lathes for sale



Looking for ideal 2 Axis Vertical Lathes for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 2 Axis Vertical Lathe Tool are quality guaranteed. We are China Origin Factory of 2 Axis Vertical Lathes Cnc. If you have any question, please feel free to contact us.
