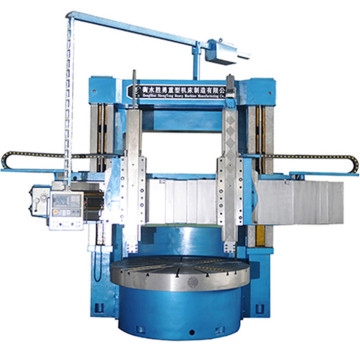

Heavy duty Conventional Vertical Lathe VTL

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5250

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 5000mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 80ton

Table Diameter: 4500mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

The Metal Lathe Machine has the characteristics of high speed, high torque, high rigidity and so on.Heavy duty VTL is widely used in the automotive industry at home and abroad. Conventional Vertical Lathe consists of the base, the worktable, the column, the beam and the tool holder. VTL CNC machines for sale can also is equipped with a set of CNC tool holder.

Heavy duty VTL not only has the functions of turning workpiece outer circle, inner hole and end face,but also has functions of enlarging cone, arbitrary circular arc surface and so on.VTL CNC machines for sale has X-axis (horizontal movement of the tool holder), Z-axis (ram up and down) two coordinate linkage feed function.

The Metal lathe machine is a kind of lathe with high efficiency, high precision, high benefit and low cost.The metal Lathe Machine is mainly used in carbide, ceramic and other cutting tools,Heavy duty VTL can conduct processing the inner and outer cylindrical surfaces, inner and outer conical surfaces, end surfaces, grooving and revolving surfaces.

Conventional vertical lathe

Technical specification of heavy duty Conventional Vertical Lathe VTL machine C5250

1 Maximum turning diameter 5000 mm

2 Maximum Height of workpiece 2000/2500/3000/3150 /3650/4150mm

3 Maximum Weight of workpiece 32/50/80 t

4 Table diameter 3600 /4200 /4500 mm

5 Speed range of table 1.3~42r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1250 mm

8 Horizontal travel of tool post -20~2630 mm

9 Rotation angle of tool post ±30°

10 Power of main motor 75/98 kw

11 Overall dimensions(L×W×H) 8610×6000×5600 mm

8610×6000×6100 mm

8610×6000×6600 mm

10930×6000×6800mm

10930×6000×7300mm

10930×6000×7800mm

Other Heavy duty Conventional Vertical Lathe VTL machine

Heavy duty VTL

Heavy duty VTL

Heavy duty VTL

Looking for ideal Conventional Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Duty VTL are quality guaranteed. We are China Origin Factory of VTL CNC Machines for Sale. If you have any question, please feel free to contact us.
