Good CNC vtl lathe machines for sale

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: CK5250

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Max.turning Diameter: 5000 Mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 80ton

Table Diameter: 4500mm

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

The CNC VTL Machines for sale can machine rotary parts with diameter below 5000mm,maximum height of the workpiece up to 4150mm, maximum weight of the workpiece up to 80 ton . Vtl lathes for sale can process the cylinder surface, cone surface and end face in the materials of hard alloy tool and ferrous metals and some non-metallic materials.

According to customer needs, cnc VTL Machines for sale can be used constant temperature cooling device. Vtl vs lathe can be equipped with an independent hydraulic station system to ensure the machining accuracy.

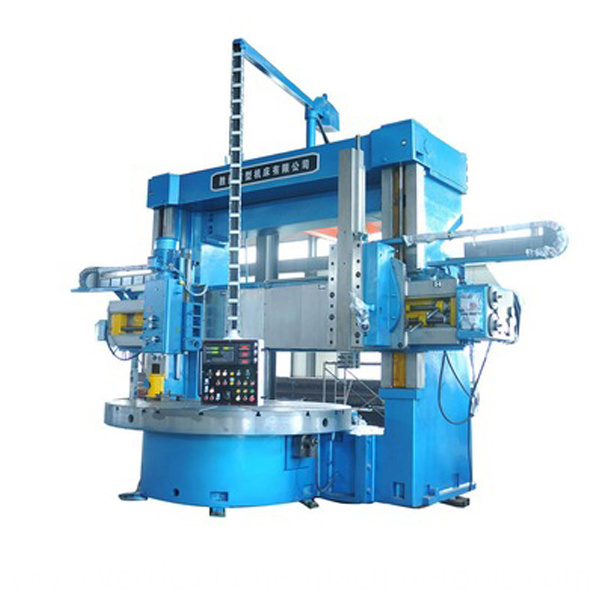

Cnc vtl machines for sale

Technical specification of CNC vtl lathe machines for sale CK5250

1 Max.turning diameter 5000 mm
2 Maximum Height of workpiece 2000/2500/3000/3150/3650/4150 mm
3 Maximum Weight of workpiece 32/50/80 t
4 Table diameter 4200 /4500 mm
5 Speed range of table Stepless
6 Maximum torque 100 KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post -20-2630 mm
9 Rotation angle of tool post -15-+30° degree
10 Power of main motor 75/98 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800 mm
10930×6000×7300 mm
10930×6000×7800 mm

Vtl lathes for sale parts photo

Vtl lathes for saleVertical Boring MillsVtl lathes for sale

Recommend cnc vtl lathe machines for sale

Cnc vtl machines for saleVtl lathes for saleVtl lathes for sale

Looking for ideal Vtl Vs Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vtl Lathes for Sale are quality guaranteed. We are China Origin Factory of Cnc Vtl Machines for Sale. If you have any question, please feel free to contact us.
