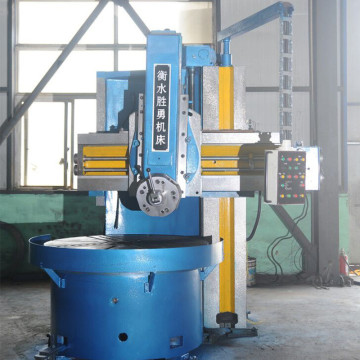

Vertical turret lathe machinery for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1500mm

Maximum Turning Diameter: 1800mm

Maximum Height Of Workpiece: 1200mm

Maximum Weight Of Workpiece: 5ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

CNC Vertical Turret Lathe machinery is controlled by PLC, and can be controlled by SIEMENS or Fanuc CNC system. This series of CNC Vertical Turret Lathe machinery is designed on the basis of CK51 mechanical vertical lathe. It inherits the advantages of large load, high torque and high rigidity.CNC vertical turret lathe machinery processing range can be used for cutting cylindrical surfaces, conical surfaces, arc surfaces and other composite surfaces, and the two axis linkage can be realized.

Vertical Turret Lathes machinery is especially suitable for processing various short shaft, pump body and disc parts. Vertical turret lathes machineryis suitable for automobiles, agricultural machinery, engineering machinery, motors, etc.

Cnc Vertical Turret Lathe Machinery

Technical reference of Vertical turret lathe machinery for sale C5118
1 Table diameter :1500mm
2 Maximum turning diameter:1800mm
3 Maximum height of workpiece:1200mm
4 Maximum weight of workpiece:5ton
5 Speed range of table:5-160r/min
6 Step of table rotation :16
7 Range of feed rates:0.8-86mm/min
8 Step:12
9 Horizontal travel of vertical slide:1000mm
Vertical travel of vertical slide:800mm
10 Horizontal travel of side tool head:600 mm
Vertical travel of side tool head 900 mm
11 Beam travel:650mm
12 Maximum section size of tool shank :30×40mm
13 Power of main motor:30kw
Rotating Speed :1470r/min
14 Power of feed motor :1.3/1.7 kw
Rotating Speed 940/1440:r/min
15 Machine weight 13.5ton
16 dimensions(L ×W×H) 2900x2900x3800 mm
Recomend vertical turret lathe machinery for sale in factory

Vertical turret lathes machinery

Vertical turret lathes machinery

Vertical turret lathes machinery

Vertical turret lathes machinery

Looking for ideal Vertical Turret Lathes Machinery Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Turret Lathe Machinery are quality guaranteed. We are China Origin Factory of Vertical Turret Lathe Machinery for Sale. If you have any question, please feel free to contact us.
