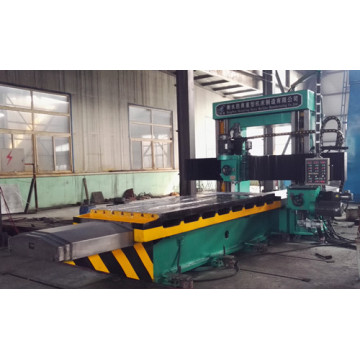

Gantry type machining centers

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days

Basic Info

Model No.: 2215HE

Type: Planer type Milling Machine

Object: Tool

Structure: Bed type

Milling Cutter Type: Angle Milling Cutter

Milling Cutter Structure: Indexable Type

Controlling Mode: CNC

Automatic Grade: Automatic

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table: 2200*1200 Mm

Maximum Load Capacity: 5000kg

Three Axis Travel: 2200*1500*800

Distance From Spindle Norse To Table Sur: 200-1000mm

Distance Between Columns: 1550mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: hengshui shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Gantry Machining Center is a large machine, is designed for processing large parts in heavy industry, such as aircraft, automobiles, ships and other heavy industries. Gantry type machining centers can be used for multi operation processing, like boring, drilling, reaming, milling ,utilized in the industries of petrochemicals, refrigeration, metallurgy, shipping building and military etc.

Gantry machining center is of high effeciency and exercise,less consumption and beautiful modelling. It can satisfy the large casting,steel parts boring and milling,drilling etc multiple operation process.

Features of Gantry Machining Centers

Base, table, beam and so likes are made of high tensile cast iron by resin-san foundary, gantry frame structure, with excellent rigidity, anti-vibration and high accuracy maintaining features.

Casting has been annealed to eliminate internal stress, machine tool guide by high frequency heat treatment, grinding, to ensure that the sliding surface of the wear resistance, durable accuracy.

Technical specification of Gantry type machining centers 2215HE

Table:2200*1200 mm

T slot:22 mm

Maximum load capacity :5000kg

Three axis travel :2200*1500*800 mm

Distance from spindle norse to table surface:200-1000 mm

Distance between columns:1550 mm

Spindle taper:BT50

Spindle speed: 4500/6000r/min,belt type (speed ratio 2:3 or1:1),imported ZF/BF gear reducer can be chosed(Low speed 1:4,High speed 1:1)

Main motor power:15/18.5 KW

Three axis motor:22/22/22 nm

Feed screw:6316/5010/5008 mm

Feed drive:Three axis couping direct connection

Fast feed :12000/10000/8000 mm/min

Cutting feed:6000 mm/min

Guideway:X axis HGW55HA*2

Y axis RGW55HA*2

Z axis HGW55HA*4

Gantry Machining Centers


Gantry Machining Centers


Looking for ideal Gantry Machining Centers Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Gantry Machining Center are quality guaranteed. We are China Origin Factory of Gantry Type Machining Centers. If you have any question, please feel free to contact us.
