Dro double column vertical lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CX5235

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: Φ2830mm

Maximum Turning Diameter: 3200mm

Maximum Height Of Workpiece: 1600-3000mm

Maximum Weight Of Workpiece: 10/20/32ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Dro Vertical Lathes are mainly suitable for cutting high speed steel, hard alloy and ceramic cutting tools to process the inner and outer cylindrical surfaces, the dro heavy duty vtl is fit for ferrous and non-ferrous metals and parts of non metallic parts, the inner and outer cone surfaces and grooves.

Dro Vertical Lathe Machine has the advantages of beautiful appearance, convenient operation and maintenance.Dro vertical Lathe Machine is composed of lathe bed, base,table,crossbeam, crossbeam lifting mechanism, vertical tool post, servo motor, hydraulic station,electric cabinet and button station etc.Its table is a heat symmetrical structure, having large bearing capacity and high rotation accuracy.Dro vertical lathes main components are reasonable structure, the spindle, base, beams and other major components are with good rigidity.

Dro vertical lathes

Technical parameters of Dro vertical lathe machine CX5235
Table diameter:Φ2830 mm
Maximum turning diameter:Φ3200 mm
Maximum height of workpiece:1600-3000mm
Maximum weight of workpiece:10/20/32ton
Maximum cutting torque of table:63000 N.m
Step of table rotation:16 step/
Speed range of table:2-40r/min
Feed step:18 step
Range of feed rates:0.25-90/0.1-1000mm/min
Rapid travelling speed of tool post:1550/2000 mm/min
Beam travel:1250mm
Horizontal travel of tool post:1900mm
Vertical travel of tool post:1000/1250/1400/1600mm
Beam lifting speed :350mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50mm
Power of main motor:55KW
Overall dimensions (L×W×H ) :6180×4600×4952mm
Machine weight ( approx ):38-62ton

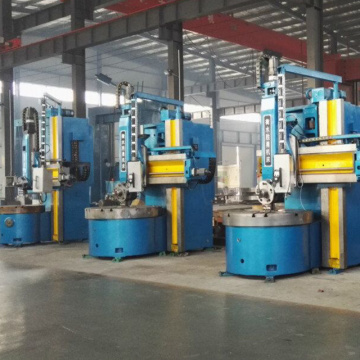

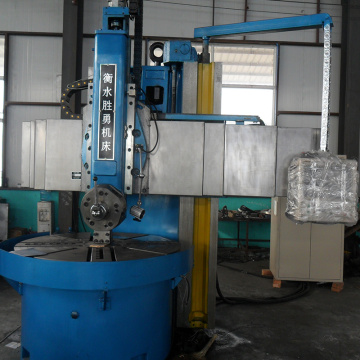

Recommend Dro vertical lathes in workshop

Dro vertical lathes
Dro vertical lathes

Dro vertical lathes

Dro vertical lathes

Looking for ideal Dro Vertical Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Dro Vertical Lathe Machine are quality guaranteed. We are China Origin Factory of Dro Heavy Duty Vtl. If you have any question, please feel free to contact us.
