Latest New vtl tools for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

CNC VTL Machine referred to CNC Vertical Turning Lathes, whose spindle is perpendicular to the horizontal plane.CNC VTL Lathes have a large diameter circular table to be used to clamp the workpiece. This type of Vertical Turning Lathe Machine is mainly used for machining large complex parts with large radial dimension and relatively small axial dimension.This VTL tools have high precision, good shock resistance, high reliability and suitable for ferrous metals, non-ferrous metals and some non-metallic cylindrical surface, inside and outside the conical surface, thread, circular surface and complex surface rough finishing. VTL tools are mainly applied to high-speed steel, carbide cutting tools and ceramic tools and widely used in motor, valves, pumps, automotive and other industries.

Vertical Turning Lathe machine consists of frame structure of left and right column, connecting beam, cross beam and worktable base, etc. The VTL tools structure is strong and rigid, bearing load is big.Vertical Turning Lathe Machine has the advantages of reasonable structure, small footprint, rigid enough, less investment and high efficiency.VTL tools machine is made of high tensile cast iron, and the worktable, basel and column adopts the thermal symmetrical structure.According to user needs, VTL tools can be equipped with chip removal device and semi-enclosed protective cover.In order to meet different user's habits and reduce training costs, Vertical turning Lathe Machine can be equipped with CNC system, the domestic system such as KND,GSK,foreign import systems such as: FUNUC, Siemens etc.So that CNC VTL machine can have a reliable control performance and good stability.

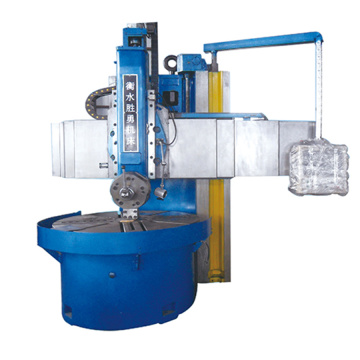

Single column new vtl tools for sale

Vtl tools for Sale

Technical specification of Single column new vtl tools for sale C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm

Recommend New vtl tools for sale in stock

Vtl tools for Sale

Vtl tools for Sale

Vtl tools for Sale

Vtl tools for Sale

Looking for ideal VTL Tools Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vtl Tools for Sale are quality guaranteed. We are China Origin Factory of New Vtl Tools for Sale. If you have any question, please feel free to contact us.
