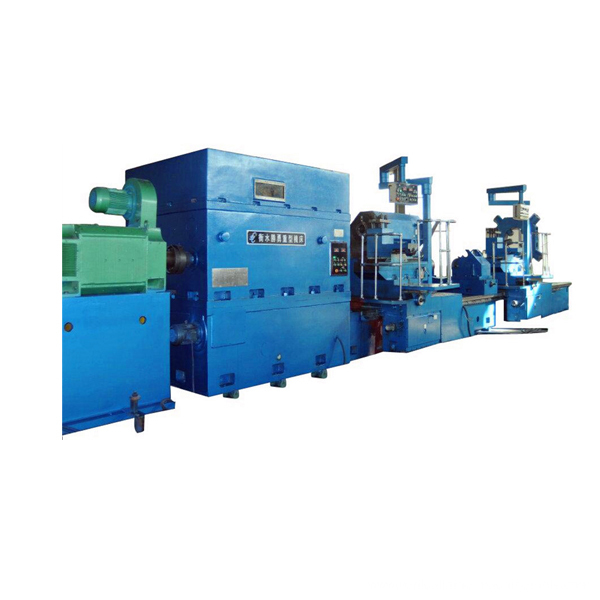

Good Quality CNC Big Bore Horizontal Lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CW61145

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 1450mm

Maximum Turning Diameter Over Carriage: 1100 Mm

Maximum Length Of Workpiece: 80dm

Maximum Weight Between Center: 18ton

Additional Info

Packaging: on request

Productivity: 1 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 1 set /month

Certificate: ISO9001

Product Description

CNC Big Bore Horizontal Lathes is appropriate for turning the roller face, internal/external cylindrical surface, conic surface, finish face and then on with large-diameter for all types of workpieces . CNC Big Bore Horizontal Lathes will do groove broaching, drilling, boring and trepanning.The main spindle of support is of through structure and supported by high-precise double-row short cylindrical rolling bearings with adjustable radial clearance. Via optimized style, the machine adopts larger spindle diameter and also the best supporting span to enhance spindle`s swiveling preciseness, and static and dynamic rigidity.



CNC Big Bore Horizontal Lathes

Big Bore CNC Lathes

Technical specification of CNC Big Bore Horizontal Lathes CW61145

1 Maximum swivel diameter on the bed 1450 mm

2 Maximum turning diameter over carriage 1100 mm

3 Maximum length of workpiece 80dm

4 Maximum weight between center 18t

5 Diameter of faceplate 1250mm

6 Maximum torque of faceplate 63KN.m

7 Range of spindle speeds 1-200 r/min

8 Maximum cutting force of carriage 60 KN

9 Total cutting force 86 KN

10 Range of feed rates ( long) 0.125-48 mm/min

11 Range of feed rates(Trans ) 0.063-24 mm/min

12 Range of feed rates(longitudinal) 0.031-12 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1500 mm/min

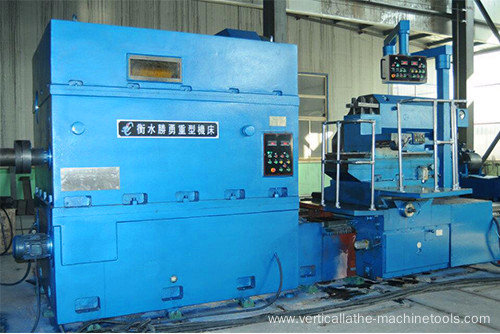

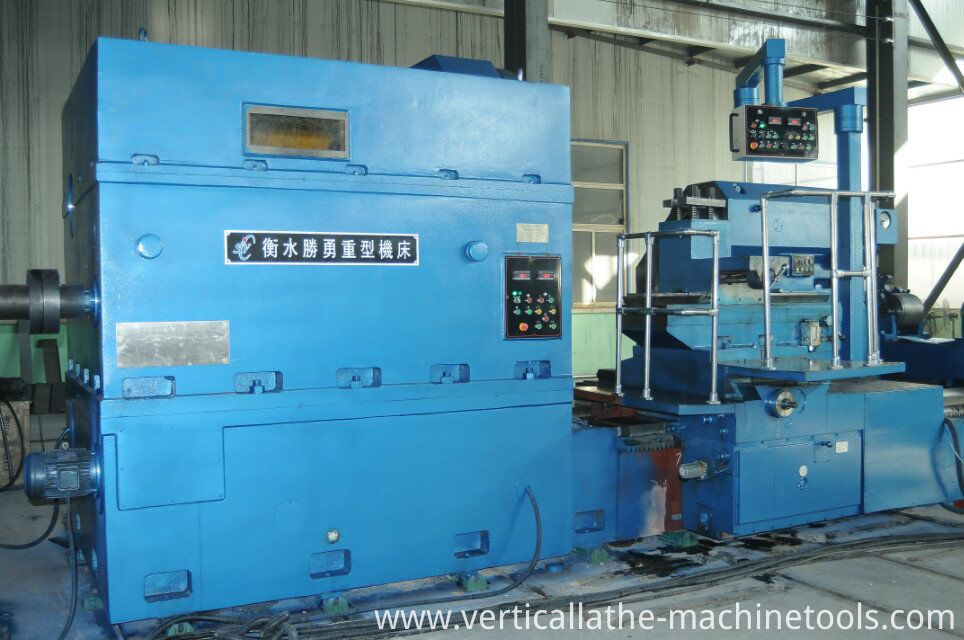

Photo of CNC Big Bore Horizontal Lathes

Big Bore CNC Lathes Big Bore CNC Lathes

Product Categories : CNC Heavy Duty Horizontal Lathe

Product Images

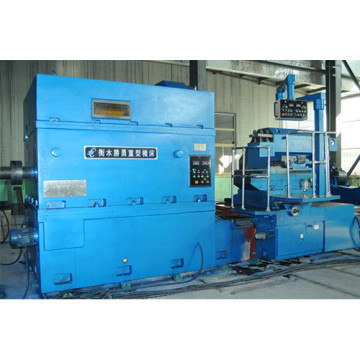

  • Good Quality CNC Big Bore Horizontal Lathes
