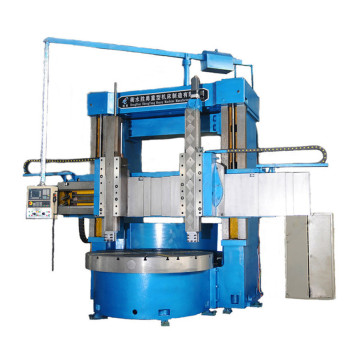

Latest design cnc vertical lathe machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 100ton

Table Diameter: 5750 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 3 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Vertical Lathe Machine C5263 is an automatic CNC vertical machines,.Vertical Lathe Machine can be widely used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering.Vertical Lathe Machine is especially suitable for automobile wheels, brake drum, flywheel housing, shell, disk and other parts of the rough, finishing.

CNC vertical machine includes lathe bed ,table base, table, crossbeam, compound rest, side head case, feeding case and main drive gear box etc. CNC vertical machine is designed for cutting and processing various metal workpieces. CNC Vertical Lathe Machine can process large-diameter tire moulds ,large-diameter flanges, various valves and pipelines and pressure vessels.

CNC vertical machine table uses constant hydraulic-static guideway, which has large carrying capacity and high rotary precision.

CNC vertical machines are designed by FEA (Finite Element Analysis) especially fit for high-efficiency, high-rigidity and heavy-duty cutting.Casting of CNC vertical machines is through strict artificial aging and vibration aging, ensure that the machine's rigidity and stability.

CNC vertical machine

Technical specification of Double column Vertical Lathe Machine C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

Parts of Double column Cnc Vertical Lathe machine

CNC vertical machineCNC vertical machineCNC vertical machine

Recommend CNC vertical lathe machine

CNC vertical machine

CNC vertical machine

CNC vertical machine

Looking for ideal CNC Vertical Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Machines are quality guaranteed. We are China Origin Factory of CNC Vertical Machine for Sale. If you have any question, please feel free to contact us.
