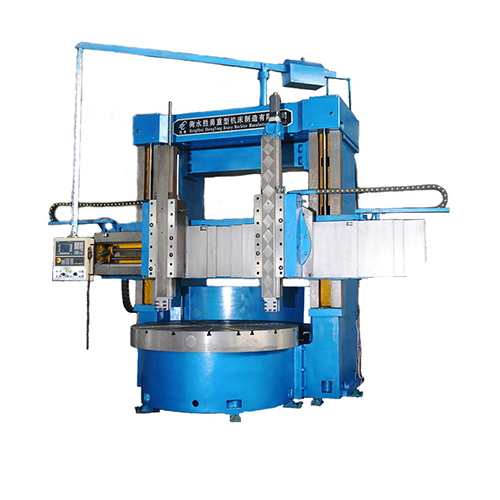

Promotion Bullard type vertical lathe machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5250

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Max.turning Diameter: 5000 Mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 32 Ton

Table Diameter: 4200 /4500 Mm

Speed Range Of Table: Stepless

Maximum Torque: 100 KN/min

Vertical Travel Of Tool Post: 1600 Mm

Horizontal Travel Of Tool Post: -20-2630 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Bullard type Vertical Lathe Machine is specially designed for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving. Adopting FEA analysis, the heavy column design and hardened guideways for cross traverse and side support give this machine the proper rigidity to support its power. Spindle runs in a high-precision two-row roller bearing and is adjustable for high, constant accuracy.

Bullard Vertical Lathe

Technical specification of bullard tyep vertical Lathe Machine CK5250

1 Max.turning diameter 5000 mm

2 Maximum Height of workpiece 2000/2500/3000/3150/3650/4150 mm

3 Maximum Weight of workpiece 32/50/80 t

4 Table diameter 4200 /4500 mm

5 Speed range of table Stepless

6 Maximum torque 100 KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post -20-2630 mm

9 Rotation angle of tool post -15-+30° degree

10 Power of main motor 75/98 kw

11 Overall dimensions(L×W×H) 8610×6000×5600 mm

8610×6000×6100 mm

8610×6000×6600 mm

10930×6000×6800 mm

10930×6000×7300 mm

10930×6000×7800 mm

Bullard type vertical lathe machine parts

Bullard Vertical LatheBullard Vertical LatheBullard Vertical LatheBullard Vertical Lathe

Recommend Bullard type Vertical Lathe

Bullard Vertical LatheBullard Vertical Lathe

Looking for ideal Bullard Vertical Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Bullard Vertical Lathes are quality guaranteed. We are China Origin Factory of Bullard Vertical Lathe Machine. If you have any question, please feel free to contact us.
