Good condition Used Vertical turning lathe machines

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: Used

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2250mm

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Port: Tianjin

Product Description

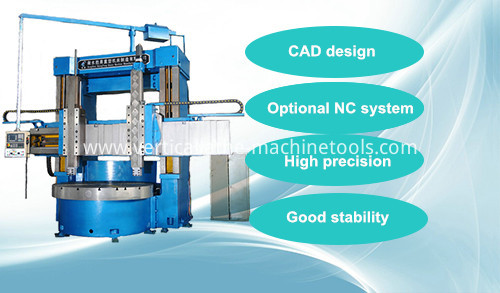

Vertical Lathe Machines are used in processing parts of rotary surface, inner and outer cylindrical surface,end surface, internal and external cone surface,groove, thread etc.Vertical lathe machinesare mainly suitable for cutting tool and ceramic tool high-speed steel, hard alloy, rough machining of ferrous metals, non-ferrous metals and some non-metallic parts.
Vertical turning machine has good structural performance:Vertical lathe machines casting is strictly processed to ensure the rigidity and stability .Its worktable is equipped with a zinc alloy wear-resistant guide plate. Vertical turning machine main movement use advanced stepless frequency control device.Knife movements is driven by servo motor through the eliminating clearance gear belt transmission.Transmission mechanism is greatly simplified and operation is simple and fast.Vertical lathe machines have better performance in loading and clamping work pieces and Vertical turning machine is more suitable for disc parts with complicate shapes.
Vertical Lathe Machine for sale VTL machine model:
C5225/C5232/C5240/C5250/C5263/ C5235
Vertical Lathe Machines

Technical reference of vertical Lathe Machine for sale C5225
Table diameter:φ2250mm
Maximum turning diameter:φ2500mm
Maximum height of workpiece:1600-2800mm
Maximum weight of workpiece:10/20ton
Maximum cutting torque of table :63000N.m
Step of table rotation:16 step/ Two gears stepless speed regulation
Speed range of table:2-63r/min
Feed step:18 step/ Stepless speed regulation
Range of feed rates :0.25-90/0.1-1000 mm/min
Rapid travelling speed of tool post :1550/2000mm/min
Beam travel:1250mm
Horizontal travel of tool post: 1400mm
Vertical travel of tool post:1000/1250/1400/1600 mm
Beam lifting speed:350mm/min
Maximum rotation angle of tool post:±30°
Clamping size of tool chuck ( Width X Height):40×50 mm
Power of main motor:55 KW
Overall dimensions (L×W×H ):5180×4600×4952mm
Machine weight ( approx ):33-38ton

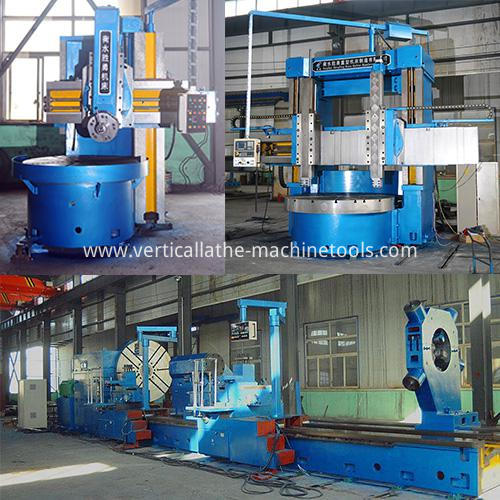

Recommend more vertical lathe machines in factory

Vertical Lathe Machines

Vertical Lathe Machines

Vertical Lathe Machines

Vertical Lathe Machines

Vertical Lathe Machines

Looking for ideal Vertical Turning Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Machines are quality guaranteed. We are China Origin Factory of Vertical Lathe Machine for Sale. If you have any question, please feel free to contact us.
