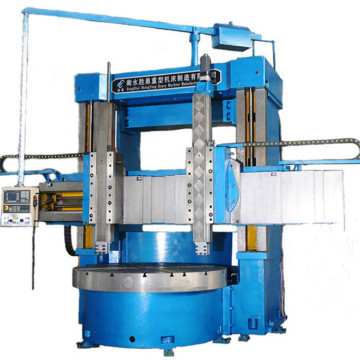

Vertical lathe components and accessories

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5225

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Condition: New

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 20ton

Table Diameter: 2250mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Double column Vertical Lathe Machine is mainly suitable for high-speed steel, cemented carbide and ceramic cutting tools.Vertical Lathe Machines can meet different batch production requirements with high efficiency, stability and reliability.Vertical Lathe Machine is employed in machining various industries, and rough and fine processing of inside and outside cylindrical surface, inside and outside cone surface, end face, cutting groove, etc. Vertical lathe machine is suitable for motors, hydraulic turbines, aviation, mining, machinery, metallurgy and general machinery industries.

Vertical lathe components include base, working table, beams and other large pieces,which use good wear resistance gray cast iron and had been tempered treatment to eliminate internal stress. One of Vertical lathe components,namely vertical tool post, has three type: square ram,electric knife tool carrier and pentagon knife tool carrier.
According to the customer need,vertical lathe machines can be equipped with vertical lathe accessories:such as constant temperature cooling device, and independent hydraulic station systemin order to guarantee the machining precision and stability.

Vertical lathe accessories

Technical specification of double column vertical lathe C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t

Parts of vertical lathe components

Vertical lathe componentsVertical lathe componentsVertical lathe components

Recommend vertical lathe machine

Vertical Lathe Machine

Vertical Lathe Machine

Vertical Lathe Machine

Looking for ideal Vertical Lathe Components Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathe Component are quality guaranteed. We are China Origin Factory of Vertical Lathe Accessories. If you have any question, please feel free to contact us.
