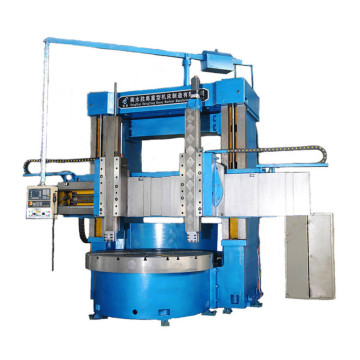

Vertical turning lathe sales promotion

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5240

Type: Vertical Lathe

Processing Accessory: Centre CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 4000mm

Maximum Height Of Workpiece: 3000mm

Maximum Weight Of Workpiece: 32000kg

Table Diameter: 3150mm

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

What is Vertical Turning Lathe? Vertical lathe uses is widely in bearings, automobiles, wind power, construction machinery and ring shaped parts of the rough and fine processing, with high machining accuracy, high processing efficiency and stable operation.We can offer new and used cnc vertical turning lathe.Vertical lathe uses in the field of a variety of black metal, non-ferrous metals and some non-metallic materials of the workpiece.
Vertical Lathe Machine is a wide application metal cutting machine.Vertical Lathe Machine can complete the turning cylindrical surface, the inner and outer conical surface, grooving and other processes.Vertical lathe machine is a high degree of automation requirements of the mechanical and electrical equipment. Vertical lathe uses has high rotary precision, high rigidity and not easy to wear, and has strong anti-seismic ability. Vertical lathe machine can be controlled by PLC and is suitable for machining various industries.

Both new and used cnc vertical turning lathe have the following structural features:

1 All the guide rails adopt hydrostatic guideway

2 Column adopts gantry frame with good vibration resistance and high precision.

3 Gearbox adopts special design, has the characteristics of high speed, high power, high precision and low noise.

4. The beam and tool rest are hydraulically balanced, which improves the feed accuracy.

Vertical lathe uses

Technical specification of vertical turning lathe C5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

Recommend more new and used cnc vertical turning lathe in workshop

Vertical lathe uses

Vertical lathe uses

Vertical lathe uses



Looking for ideal Vertical Lathe Uses Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Used Cnc Vertical Turning Lathe are quality guaranteed. We are China Origin Factory of What is Vertical Turning Lathe. If you have any question, please feel free to contact us.
