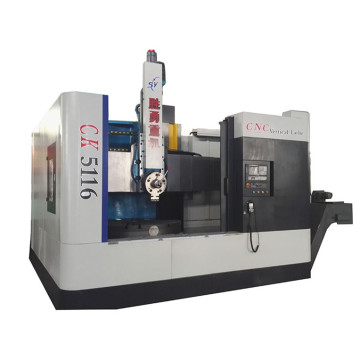

CNC VTL 2 AXIS VTL FOR SALE

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5116

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1600mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5000kg

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

CNC VTL 2 axis for sale is a kind lathe of advanced equipment with good performance, wide range of technology and high production efficiency.Vertical Turning Lathe is developed on the basis of domestic and foreign advanced manufacturing technology,Vertical turning lathe can carry out latest national standards and the accuracy of our factory stiffness standards.Large VTL can meet the requirements of the strong cutting, heavy load, high dynamic and static accuracy.
CNC VTL Machine castings undergo rigorous artificial aging and vibration aging in order to ensure machine rigidity and stability.CNC VTL machine is fit for tire mold, rotary support, turbine impeller, flange and other disc-shaped parts processing.CNC VTL Lathes are suitable for cemented carbide tool and ceramic tool, etc. Large vtl can realize rough, semi-finishing and finishing for curved surface.
This series of Large vtl machine is mainly used in cutting tools and ceramic tool high-speed steel and hard alloy of ferrous and non-ferrous metal , non metal parts inside and outside cylindrical surface, conical surface, inner and outer end of the rough machining.

Vertical turning


CNC VTL 2 AXIS FOR SALE CK5116 technical specification

1 Table diameter 1400 mm

2 Maximum turning diameter 1600 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Rotation speed of work table 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 915 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 22 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight 12.5 t

17 Overall dimensions(L×W×H) 2800×2800×3800 mm

Recommend other CNC vtl 2 axis for sale

CNC VTL 2 axis for sale

CNC VTL 2 axis for sale

CNC VTL 2 axis for sale


Looking for ideal CNC VTL 2 AXIS FOR SALE Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Large Vtl are quality guaranteed. We are China Origin Factory of Vertical Turning. If you have any question, please feel free to contact us.
