Large Centre lathe machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CW61200

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Maximum Swivel Diameter On The Bed: 2000mm

Maximum Turning Diameter Over Carriage: 1750mm

Maximum Length Of Workpiece: 80dm

Maximum Weight Between Center: 63ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Heavy duty Center lathe machines is designed for turning of forged iron and steel workpieces, turning of non-ferrous metal elements of massive or medium sizes.Center Lathe Machine adopts modular design, has a carrying capacity, high precision, reasonable structure and a wide operation. Coupled with different attachments center lathe can be grinding, milling and curved shaft processing.

Heavy duty Center lathe machines features:

1 Powerful horizontal lathe

2 High power, high rigidity and large rotating speed range

3 Bed adopt high strength low stress advance cast iron pouring,rectangle guideway with well heat stability,large supporting and cutting stability

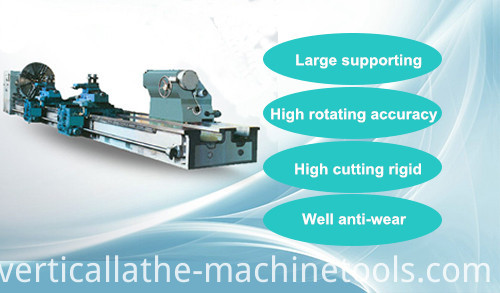

Centre lathe machine

Technical specification of Centre lathe machine CW61200

1 Maximum swivel diameter on the bed 2000 mm

2 Maximum turning diameter over carriage 1750 mm

3 Maximum length of workpiece 80dm

4 Maximum weight between center 63t

5 Diameter of faceplate 2000mm

6 Maximum torque of faceplate 100KN.m

7 Range of spindle speeds 0.63-125 r/min

8 Maximum cutting force of carriage 90 KN

9 Total cutting force 160 KN

10 Range of feed rates ( long) 0.265-500 mm/min

11 Range of feed rates(Trans ) 0.106-200 mm/min

12 Range of feed rates(longitudinal) 0.053-100 mm/min

13 Rapid speed of of carriage( long) 3000 mm/min

14 Rapid speed of of carriage( Trans) 1200 mm/min

15 Dimensions of close mode steady supporting Φ200-700 mm

16 Dimensions of open mode steady supporting Φ700-1000mm

17 Scale of tool bar section 70×70mm

18 Power of main motor DC:100KW

19 Machine weight(Approx) 87 T

20 Overall dimensions(L×W×H) 1156×304×275cm

Centre Lathe MachineCentre Lathe Machine

Looking for ideal Centre Lathe Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Centre Lathe for Sale are quality guaranteed. We are China Origin Factory of Centre Lathe Machines. If you have any question, please feel free to contact us.
