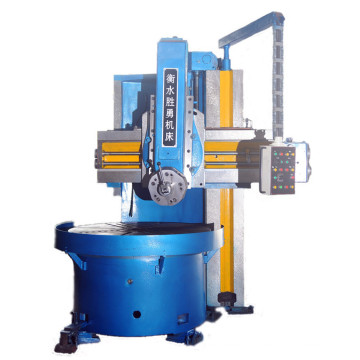

2 Axes vertical turning lathe machine prices

Introduction of double column vertical lathe : Double column Vertical Turning Lathe VTL Machine is equipped with one vertical tool head with one RAM. It can also be equipped with high precision digital readout system (DRO) on X / Z axes. Electric encoder together with solenoid valves is integrated into the gear box. The Lathe Machine is made from the workbench, base, portal frame, gear box,beams,turret, feed box etc,which are casted with the procedure high strength cast iron and resin sand and eliminated residual stress by perfect technology for heating processing.

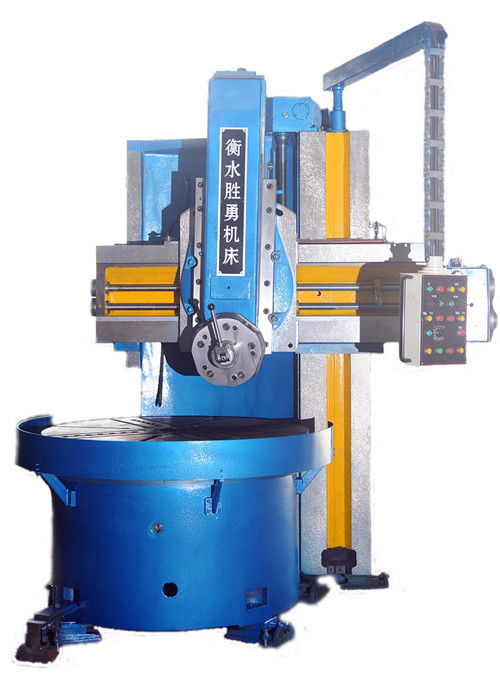

Double column Vertical Lathe Machine

Technical specification of Double column Vertical Lathe Machines C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t
