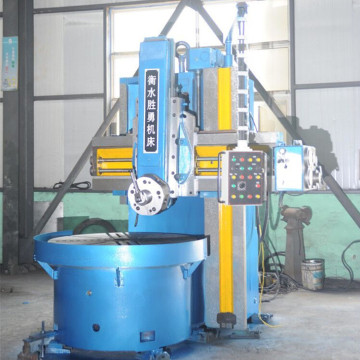

Advance level vertical turning lathes

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: C5112

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1000 Mm

Maximum Turning Diameter: 1250 Mm

Maximum Height Of Workpiece: 1000 Mm

Maximum Weight Of Workpiece: 3.2 T

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean,Land

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Port: Tianjin

Product Description

Vertical turning lathes are a good performance and high efficiency equipment. Vertical Turning Lathe Machine has the characteristics of reasonable structure, strong rigidity, high efficiency and energy saving. Vertical Turning Lathe machine is widely applied to cutting various kinds of workpieces, such as rubber machinery, mining machinery, pressure vessel and tire mold.
Vertical turning lathes are designed for circular surface ,curved surface, inside and outside the cylindrical surface, inside and outside the conical surface, end face and thread.Vertical Turning Lathe Machine is mainly composed of the column, cross beam, the worktable, the base and so on.Vertical turning Lathe Machine structure has strong rigidity and can bear the heavy cutting load.Vertical turning lathe for sale can use constant temperature cooling device.Vertical turning lathes can be set up independent hydraulic station system, to ensure the accuracy and the stability.According to customer needs, CNC system can choose imported or domestic configuration.
Vertical turning lathes are widely used in machinery manufacturing and machinery repair and other departments.Vertical turning lathes farture high torque and high rigidity advantages, can be used for processing kinds of shafts, disc parts.Vertical turning lathe for sale can meet the high-speed cutting speed requirements on ferrous metal and nonferrous metal.
Vertical turning lathe for sale models:
C5112 / C5116 / C5118 / C5120 / C5123 / C5125 / C5126
C5225 / C5232 / C5240 / C5250 / C5263 / C5235

Vertical Turning Lathes

Technical specification of Advance level vertical turning lathes C5112

1 Table diameter 1000 mm
2 Maximum turning diameter 1250 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 3.2 t
5 Speed change of table 6.3-200 r/min
6 rotation speed of work table 16 step
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 700 mm
Vertical travel of tool post 650 mm
10 Horizontal travel of side cutter bar 600 mm
Vertical travel of side cutter bar 800 mm
11 Crossrail travel 500 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 22 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw r/min
Revolutions 940/1440 r/min
15 Machine weight 9.5 t
16 Overall dimensions(L×W×H) 2460×2380×3000 mm

Used vertical turning lathe and new vertical turning lathes in factory

vertical turning lathes

vertical turning lathes

vertical turning lathes

Vertical turning lathes

Looking for ideal Vertical Turning Lathe for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turning Lathes are quality guaranteed. We are China Origin Factory of Used Vertical Turning Lathe. If you have any question, please feel free to contact us.
