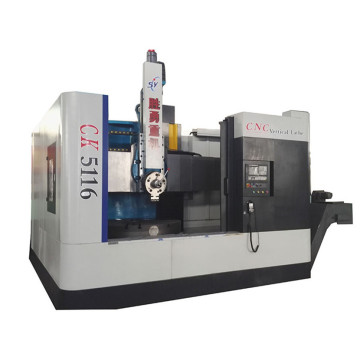

Excellent new VTL lathe for metal processing

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Controlling Mode: CNC

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1800mm

Maximum Height Of Workpiece: 1000mm

Maximum Weight Of Workpiece: 5ton

Speed Change Of Table: 5-160 R/min

Power Source: Manual

Automatic Grade: Manual

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

This series of new VTL Machines are a kind of advanced equipment with good performance, wide application and high production efficiency.VTL machine sale is a set of electrical and hydraulic integrated vertical lathe series products. VTL machine sale is generally available for turning inside and outside the cylindrical surface, inside and outside the conical surface, grooving and other processes with a large processing diameter and strong cutting.
VTL machine sale has many characteristics.VTL machines sale main parts include gantry frame,column,table,ram,feed box,turret and so on.The table has the rotation precision, big bearing capacity and small heat deformation.Base, table, bed, beams and other large parts use castings with high strength, good wear resistance.New vtl machines can be equipped with fully enclosed protection based on special requirement,in order to effectively prevent chips and coolant splash.
New vtl machines

Technical specification of Single column new vtl machines C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm

More single column and double column VTL machine sale

VTL machine sale

VTL machine sale

VTL machine sale

VTL machine sale

Looking for ideal New Vtl Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the VTL Machines Sale are quality guaranteed. We are China Origin Factory of VTL Machine Sale. If you have any question, please feel free to contact us.
