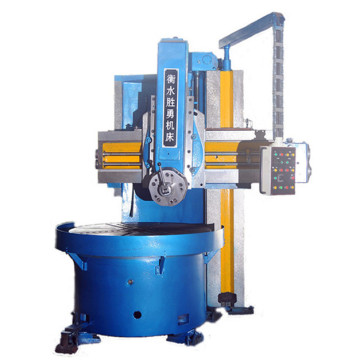

Vertical lathe process cylinder surfaces

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10ton

Additional Info

Packaging: as rquest

Productivity: 5 set

Brand: shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

Vertical Turning Lathe Machine is a necessary machining tool in mechanical processing. Vertical Turning Lathe machine is mainly used to process large and heavy work pieces with large diameter and short length. The main feature of large Vertical Lathes is that its spindle is in a vertical position.
Vertical Turning Lathe Machine has vertical structure with good stability and aseismic performance.Vertical lathe process the mentioned functions: machining hole, cylindrical, conical and circular surfaces.This series of large vertical lathes are suitable for the rough and fine processing of the complex parts ,such as motor shell, the wheel, valve body, flange and pump body, etc.
Vertical lathe process main parts use the China and foreign famous brand like the CNC control system, main electric parts, main bearings, ball screw, main hydraulic parts etc.
The introduction of mature technology, reliable selection of imported fittings, and our advanced processing, testing ways, to ensure large vertical lathes has high machining accuracy, high rigidity, high reliability, and have a feature of rational layout, convenient operation, high automation degree etc. Vertical turning Lathe Machine is widely used for mechanical processing of metallurgical machinery, chemical machinery, power generation equipment, national defense and other industries.

Large Vertical Lathes

Technical specification of large vertical lathes process C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm

Recommend single column and double column large vertical lathes in factory

Large Vertical Lathes

Large Vertical Lathes

Large Vertical Lathes

Looking for ideal Vertical Lathe Process Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Lathes Process are quality guaranteed. We are China Origin Factory of Large Vertical Lathes. If you have any question, please feel free to contact us.
