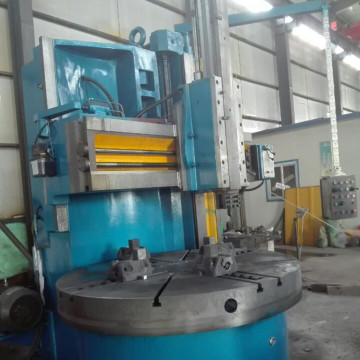

Cheap and fine industrial vertical lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Manual Vertical Turret Lathe C5118 is applicable to a variety of small and medium sized ring, shell and flange parts,cylindrical surface, conical surface, the inner hole processing. you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface on the industrial lathe.
Industrial Vertical Lathes has many structural features: the Industrial lathe worktable is a thermal symmetric structure. Main shaft of the worktable adopts high precision double row cylindrical roller bearing centering. Column is closed with the gantry frame.Through the finite element analysis and calculation, the structure size and the stress state are optimized. Industrial vertical lathes castings are made of high quality resin sand casting process. The castings are of high quality and durable after aging treatment.

Manual vertical turret lathe has the function of machining excircle, end face, cone surface and arc surface.Manual vertical turret lathe is particularly suitable for automotive drums, brake drum,disk and other parts of the rough finishing processing.

Manual Vertical Turret Lathe

Technical parameters of Cheap and fine industrial vertical lathes C5118

1 Table diameter :1500mm
2 Maximum turning diameter:1800mm
3 Maximum height of workpiece:1200mm
4 Maximum weight of workpiece:5ton
5 Speed range of table:5-160 r/min
6 Step of table rotation :16
7 Range of feed rates:0.8-86 mm/min
8 Step:12
9 Horizontal travel of vertical slide:1000mm
Vertical travel of vertical slide:800mm
10 Horizontal travel of side tool head:600 mm
Vertical travel of side tool head:900mm
11 Beam travel:650mm
12 Maximum section size of tool shank :30×40mm
13 Power of main motor:30kw
Rotating Speed :1470r/min
14 Power of feed motor :1.3/1.7kw
Rotating Speed :940/1440 r/min
15 Machine weight:13.5ton
16 Overall dimensions(L ×W×H) :2900x2900x3800 mm

Cheap and fine industrial vertical lathes in factory

Industrial vertical lathes

Industrial vertical lathes

Industrial vertical lathes
Industrial vertical lathes

Looking for ideal Industrial Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Manual Vertical Turret Lathe are quality guaranteed. We are China Origin Factory of Industrial Vertical Lathes. If you have any question, please feel free to contact us.
