CNC vertical turning lathe VTL machine CK5118

    Unit Price: 50000~90000 USD
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: CK5118

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Ocean

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

Product name :CNC Vertical Turning Lathe VTL Machine CK5118

Application fields of CNC Vertical Turning Lathe Machine CK5118

This machine is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.

CNC Vertical Turret Lathe machines VTL machine model:

CK5112/CK5116/CK5118/CK5120/CK5123/CK5125/CK5126

CK5225/CK5232/CK5240/CK5250/CK5263/ CK5235

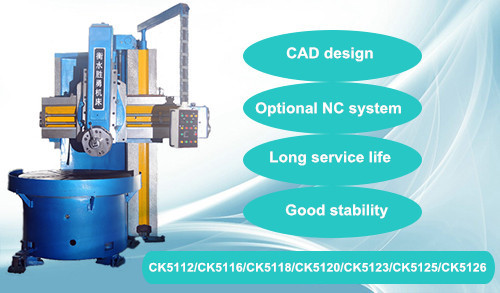

CNC vertical lathe

Technical specification of CNC Vertical Turning Lathe VTL machine CK5118

1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 r/min
6 Rotation speed of work table 16
7 Feed rates 0-1000 mm/min
8 Step stepless
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 r/min
14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Rapid travelling speed of tool post 2000 mm/min
16 Machine weight 17.5 t
17 Overall dimensions(L×W×H) 2900×2900×3800mm

Accessories

CNC vertical lathe


Warehouse

CNC vertical lathe

Workshop

CNC vertical lathe



Customer

CNC vertical lathe

Looking for ideal CNC VTL Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Vertical Turning Lathe are quality guaranteed. We are China Origin Factory of VTL Cnc Machine. If you have any question, please feel free to contact us.
