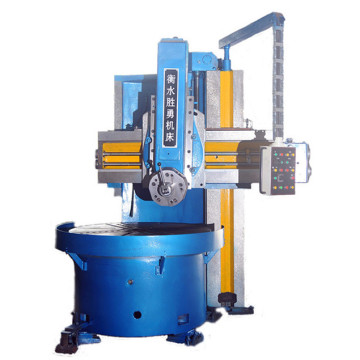

Conventional vertical turning lathe VTL machine

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5125

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Setting Mode: Table

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2500mm

Maximum Height Of Workpiece: 1350mm

Maximum Weight Of Workpiece: 10 Ton

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Precision: Normal Precision

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

This series of Vertical Turning Lathe is designed for high precision, high stability and high rigidity. Vertical turning lathe is suitable for turning tools such as cemented carbide and high speed steel. Vertical turning lathe is suitable for turning black metal, non-ferrous metal and some non-metal material parts.

Conventional vertical turning lathe features good performance,wide processing range and high efficiency. Conventional Vertical Lathe can process some kinds of short axis, disc type parts, also can turn arc surface, the internal and external surface of the rotating body, end face, groove and so on.Conventional vertical lathe is particularly suitable for motor shell and flange etc.
Conventional Vertical Lathes adopt modular design can be configured according to the different needs of users.Its main components such as the spindle, base, beams and others with reasonable structure, high precision and good rigidity.According to customer requirements,digital readout device,side tool post can also be added on conventional Vertical Lathes.
Conventional vertical turning lathe model:C5112/C5116/C5118/C5120/C5126
Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm
Maximum height of workpiece: 1000//1200/1300/1350 mm
Maximum weight of workpiece 3.2 / 5 / 6 / 8 / 10 t

Conventional vertical turning lathes

Conventional vertical lathe

Technical specification of Conventional vertical lathes C5125

1 Table diameter 2300mm

2 Maximum turning diameter 2500mm

3 Maximum height of workpiece 1350mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of tool post 1600mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 750mm

Vertical travel of side cutter bar 1100mm

11 Crossrail travel 850mm

12 Maximum section scale of tool bar 35×45mm

13 Power of main motor 45 kw

Revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 23 t

16 Overall dimensions(L×W×H) 3450×3430×4100 mm

Recommend conventional vertical lathes in factory

Conventional vertical lathes

Conventional vertical lathes

Conventional vertical lathes

Conventional vertical lathes

Looking for ideal Conventional Vertical Turning Lathe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Conventional Vertical Lathes are quality guaranteed. We are China Origin Factory of Conventional Vertical Lathe. If you have any question, please feel free to contact us.
