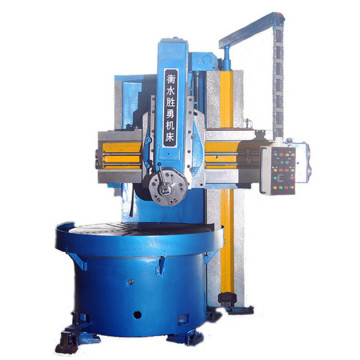

CNC vertical turret lathe description

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10 Ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set/month

Certificate: ISO9001

Port: Tianjin

Product Description

What is a CNC Vertical Turret Lathe ?Vertical Turret Lathe definition is a Lathe Machine that is mainly used for processing large diameter and short length heavy products.Vertical turret lathe is mainly fit for workpiece that is not easy clamped in the horizontal lathe.
Vertical turret lathe description is suitable for hard and fine machining of metal and some non-metal parts. Vertical turret lathe has a wide processing range in the internal and external cylindrical surface, conical surface, cutting groove, and revolving curved surface.
Vertical turret lathe cnc type can meet the usual machining of inner circle, outer circle, cone, kinds of thread and surface.
Cnc Vertical Lathe can meet the rough and fine processing of castings and forgings of kinds of superalloy, titanium alloy, stainless steel, cast iron, cast steel and so on. Cnc vertical lathe is mainly used for a variety of shell, disc and other complex parts of the rotating variety.

Vertical turret lathe description

Vertical turret lathe description

Technical specification of Vertical turret lathe VTL cnc CK5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10 t

5 Speed range of table 2.5-80 r/min

6 rotation speed of work table 16

7 Range of feed rates 0-1000 mm/min

8 Step stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Rapid travelling speed of tool post 2000 mm/min

16 Machine weight(Approx) 19.5 t

17 Overall dimensions(L ×W×H) 3450x3430x4100mm

Photo of Vertical turret lathe description

Vertical turret lathe description

Vertical turret lathe description

Vertical turret lathe description

Looking for ideal Vertical Turret Lathe Cnc Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turret Lathe Definition are quality guaranteed. We are China Origin Factory of Vertical Turret Lathe Description. If you have any question, please feel free to contact us.
