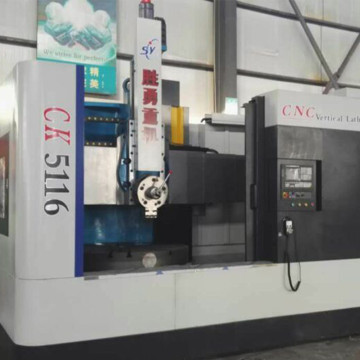

Single column vertical lathe machine CNC VTL

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5116

Type: Horizontal Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400mm

Maximum Turning Diameter: 1600mm

Maximum Height Of Workpiece: 1200mm

Maximum Weight Of Workpiece: 5ton

Additional Info

Packaging: as request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

CK5116 Vertical Turret Lathe VTLmachine processing diameter is 1600mm, maximum processing height up to 1000mm. The Vertical Lathe Cnc VTL can adopt a variety of control systems, such as FUNUC, SINUMERIK, KND, GSK, etc.And the corresponding AC servo motor is used as the driving component, which has reliable control performance.Operation panel makes the machine tool easy to operate and accurate. Vertical lathe CNC VTL has a wide range of application, high efficiency, good accuracy and stability. Vertical lathe CNC VTL can achieve two axis linkage, cutting cylindrical surface, cone surface, arc surface and some combination surface.Vertical Lathe Machine CNC VTL can meet the requirement of high precision machining batch products.

The vertical lathe CNC VTL is equipped with a closed protective cover, protective cover can ensure the cooling liquid and iron without spilling, the protective cover has the function of protection and collection scrap iron and cooling liquid.

Vertical Lathe Cnc Vtl

Technical parameters of Vertical Lathe Machine CNC VTL Ck5116
1 Table diameter :1400mm
2 Maximum turning diameter:1600mm
3 Maximum height of workpiece:1200mm
4 Maximum weight of workpiece:5ton
5 Speed range of table:5-160r/min
6 Step of table rotation :16
7 Range of feed rates:1-1000 mm/min
8 Step:Stepless
9 Horizontal travel of vertical slide:915mm
Vertical travel of vertical slide 800 mm
10 Beam travel:650mm
11 Maximum section size of tool shank :30×40mm
12 Power of main motor:22 kw
Rotating Speed :1470r/min
13 Power of feed motor :1.3/1.7kw
Rotating Speed :940/1440 r/min
14 Machine weight :12.5ton
15 Overall dimensions(L ×W×H) :2800x2800x3800 mm

Recommend vertical lathe machine CNC VTL in factory

Vertical lathe CNC VTL

Vertical lathe CNC VTL

Vertical lathe CNC VTL

Vertical lathe CNC VTL

Looking for ideal Vertical Lathe CNC VTL Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vertical Turret Lathe VTL are quality guaranteed. We are China Origin Factory of Vertical Lathe Machine CNC VTL. If you have any question, please feel free to contact us.
