2 axis cnc vertical turning lathes

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: CK5126

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2300mm

Maximum Turning Diameter: 2600mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 10ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

2 axis cnc Vertical Turning Lathe is suitable for hard alloy and high speed steel cutting tools, Vertical Lathe Machine can be conducted machining ferrous metals, non-ferrous metals and some non-metallic materials of parts.2 axis CNC Vertical Turning Lathes can be complex machining complex rotary surface,but also fit for grooving and cutting and other processing.
This series of 2 axis Cnc Vertical Lathe vtl machine is fit for ring, shell and flange and other parts of the plane, the outer circle, the outer cone, the inner cone.The basic parts of vertical Lathe Machine is HT250 high quality cast iron. After aging treatment of heat aging and vibration aging, the internal stress is eliminated. So vertical lathe machine has good rigidity.
Vertical lathe machine can add CNC system according to the needs of users.After programming, the equipment,CNC Vertical Lathe Machine is automatically processed. 2 axis cnc vertical turning lathe processing categories include: inside and outside cylindrical surface, conical surface circular surface and grooving, various thread.

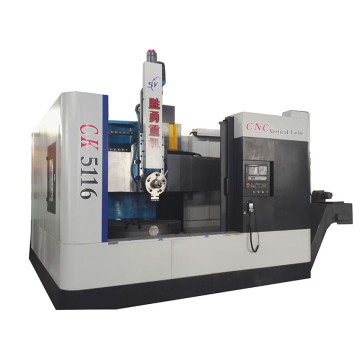

2 axis cnc vertical turning lathe

Technical specification of 2 axis cnc vertical turning lathe Ck5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 1-1000 mm/min

8 Step: stepless

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Crossrail travel 850 mm

11 Maximum size of tool bar section 35×45 mm

12 Power of main motor 37 kw

Rotating Speed 1470 r/min

13 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

14 Machine weight(Approx) 19.5 t

15 Overall dimensions(L ×W×H) 3450x3430x4100 mm

Single column and double column 2 axis cnc vertical turning lathes for sale

2 axis cnc vertical turning lathes

2 axis cnc vertical turning lathes

2 axis cnc vertical turning lathes

Looking for ideal 2 Axis Cnc Vertical Turning Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 2 Axis Cnc Vertical Turning Lathe are quality guaranteed. We are China Origin Factory of 2 Axis Cnc Vertical Lathe Vtl. If you have any question, please feel free to contact us.
