Vertical turret lathe machine specifications C5232

    Unit Price: USD 50000 - 90000 / Set/Sets
    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: C5232

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 3150mm

Maximum Height Of Workpiece: 1600mm

Maximum Weight Of Workpiece: 10ton

Table Diameter: 2830mm

Additional Info

Packaging: on request

Productivity: 5 set/month

Brand: Shengyong

Transportation: Land

Place of Origin: Hengshui City,Hebei Province

Supply Ability: 5 set/month

Certificate: ISO&CE

Product Description

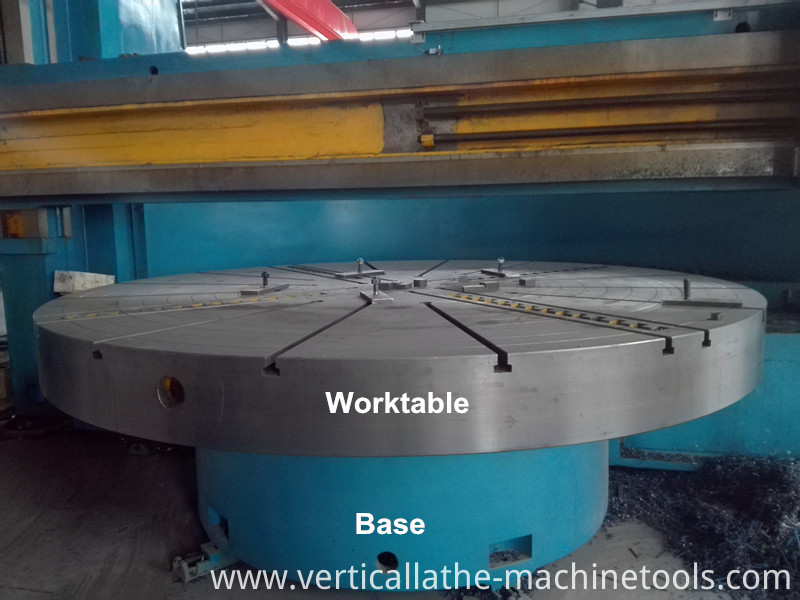

Vertical Turret Lathe Machine is suitable for inner and outer cylinder surface turning,inner and outer taper surface turning,end face turning,curving,slotting ,The Vertical Lathe Cnc type can process inner and outer taper surface turning roughly and finely of the ferrous-metal,non-ferrous metal or part non-metal componerts with high speed alloy steel cutter. Our castings of vertical lathe cnc type adopt adopt the heat symmery structure with unitary casting,especially guide way of worktable adopt constant current dead load guideways,as well as constant temperature codant,so that vertical turret Lathe Machine can keep a high rotating accuracy and high rigity and heat stablity.

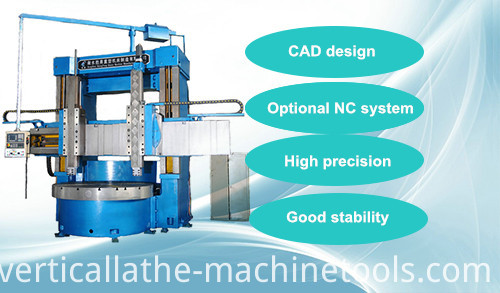

Vertical Lathe CNC

Technical specification of Vertical turret lathe machine specifications C5232

1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t

Features of VTL vertical turret lathe machine:

Vertical Lathe PriceVertical Lathe PriceVertical Lathe PriceVertical Lathe PriceVertical Lathe Price

Vertical Lathe Price in stock for sale

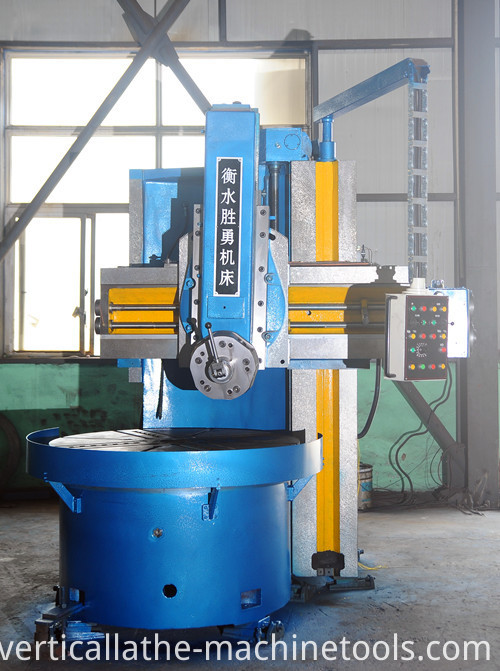

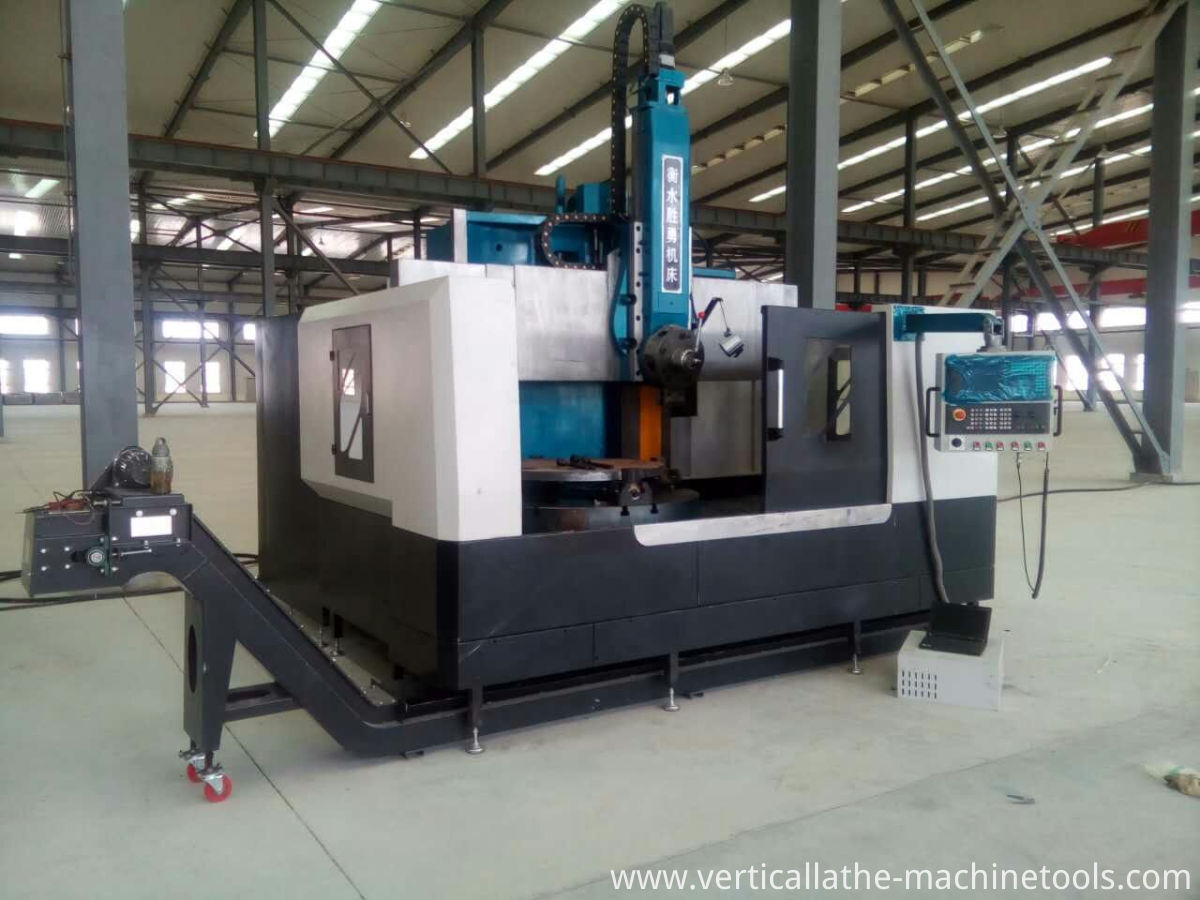

Vertical Lathe CNCVertical Lathe CNC

Product Categories : Vertical Lathe Machine

Product Images

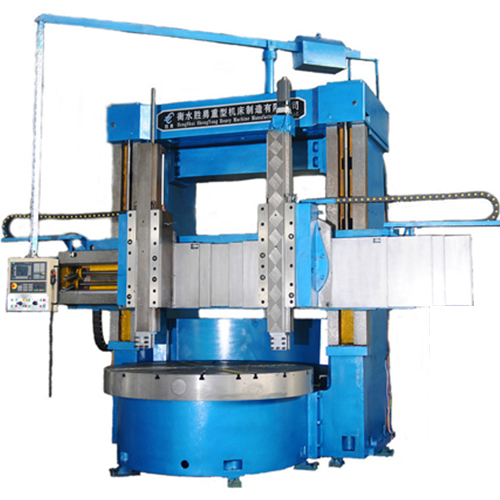

  • Vertical turret lathe machine specifications  C5232

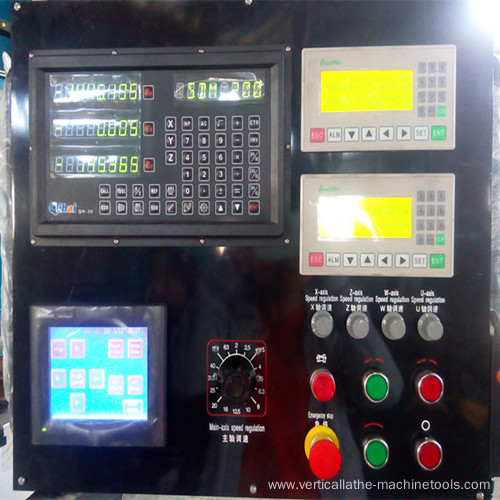

  • Vertical turret lathe machine specifications  C5232
