Double column vertical lathes machines advantages

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5263

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Double-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Semiautomatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Maximum Turning Diameter: 6300mm

Maximum Height Of Workpiece: 4150mm

Maximum Weight Of Workpiece: 100ton

Table Diameter: 5750 Mm

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Double column Vertical Lathes machines can be utilized in processing large variety of parts, single-piece and small batch parts parts. Vertical Lathe Machine is suitable for processing medium and small disk parts, the processing diameter up to 6300mm, the maximum processing height of 4150mm.Vertical lathe axis are vertically arranged, the table of the worktable is in the horizontal plane, so vertical Lathe Machine is more convenient to clamp the workpiece and find the correct.
Vertical lathes machines are designed for the use in the motor, valve, pump, automobile and other industries.Vertical lathe machine is widely used in mechanical processing of motor base, valve body, pump body, diesel engine and so on. Compared with similar products in China, reasonable structure,small area, low energy consumption, less investment and convenient maintenance are our vertical lathe advantages.
Vertical lathe machine is specially suitable for a variety of complex rotary surface roughness, finishing.Vertical lathes machines have good performance in a variety of complex rotary type high-speed turning machining shapes. Vertical lathe machine can be used to turn the outer cylindrical workpiece, the hole, the end and the outer cone and so on.

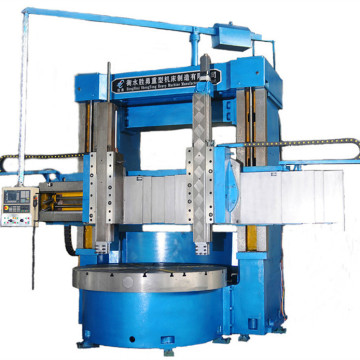

2 axis vertical lathes machines

Vertical lathes machines

Technical specification of 2 axis vertical lathes machines C5263

1 Maximum turning diameter 6300 mm

2 Maximum Height of workpiece 3150/3650/4150 mm

3 Maximum Weight of workpiece 50/80/100 t

4 Table diameter 4500/5750 mm

5 Speed range of table 0.5-50r/min

6 Maximum torque 1 60KN/min

7 Vertical Travel of tool post 1600 mm

8 Horizontal travel of tool post 3415 mm

9 Rotation angle of tool post -15°-±30°

10 Power of main motor 75kw

11 Overall dimensions(L×W×H) 12230×6800×6800 mm

12230×6800×7300 mm

12230×6800×7800 mm

Recommend 2 axis vertical lathes machines

Vertical lathes machines

Vertical lathes machines

Vertical lathes machines

Vertical lathes machines
