New vtl lathe machine for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 28 Days

Basic Info

Model No.: CK5123

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Inclined Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Manual

Controlling Mode: Artificial

Automatic Grade: Manual

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 2000mm

Maximum Turning Diameter: 2300mm

Maximum Height Of Workpiece: 1300mm

Maximum Weight Of Workpiece: 8ton

Additional Info

Packaging: as requirement

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Product Description

CNC VTL Machine belongs to large mechanical equipment.CNC VTL Machines are widely used to process large and heavy work pieces with large radial size, relatively small axial size and complex shape.CNC VTL Lathes can simultaneously control the X, Z two-axis movement.CNC VTL Machines can process ferrous metals, non-ferrous metals and some non-metal workpieces and can be processed by high-speed steel or carbide tools

The series Vertical Lathes vtl Lathe Machine can be applied in mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face, grooving etc. Vtl lathe is suitable for machining of kinds of industries. VTL lathes can process external column face, circular conical surface,head face, shotted, severance of car wheel lathe.

This kind of vtl lathe features better performance,excellent quality and reasonable price.

1 Vtl lathe machine bring in finite element analysis, specially designed aiming at high efficiency, high rigidity, heavy cutting etc working conditions.

2 The symmetrical layout can avoid heat deformation.

3 Temper and aging processings has guaranteed a long time stability for the lathe' s accuracy.

4 CNC vtl lathe numerical control system is Siemens or Fanuc.

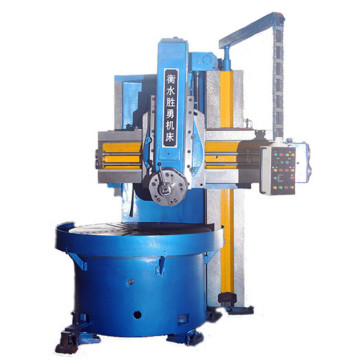

New vtl lathe machine for sale

Vtl lathe

Technical specification of new vtl lathe machine for sale CK5123

1 Table diameter 2000mm

2 Maximum turning diameter 2300mm

3 Maximum height of workpiece 1300mm

4 Maximum weight of workpiece 8 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0-1000 mm/min

8 Step stepless

9 Horizontal travel of tool post 1250mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 650mm

Vertical travel of side cutter bar 1000mm

11 Crossrail travel 750mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 19.5 t

16 Overall dimensions(L×W×H) 3300×3280×4000 mm
