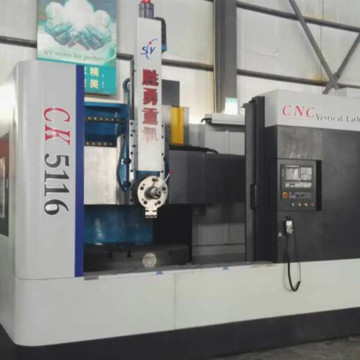

Economical cnc metal vertical lathes for sale

    Payment Type: L/C
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: C5118

Type: Vertical Lathe

Processing Accessory: Chuck CNC Lathe

Guide Rail: Horizontal Guide Rail

Tool Holder: Single-tool Holder CNC Lathe

Power Source: Electric

Controlling Mode: CNC

Automatic Grade: Automatic

Setting Mode: Table

Precision: Normal Precision

Certification: ISO 9001

Condition: New

Table Diameter: 1400 Mm

Maximum Turning Diameter: 1800 Mm

Maximum Height Of Workpiece: 1000 Mm

Maximum Weight Of Workpiece: 5ton

Additional Info

Packaging: on request

Productivity: 5 set

Brand: Shengyong

Transportation: Ocean

Place of Origin: China

Supply Ability: 5 set /month

Certificate: ISO9001

Port: Tianjin

Product Description

Cheap Vertical Lathe Machine C5118 is a kind of CNC metal lathes, the CNC metal lathes are mainly used for processing kinds of rotary surfaces, such as inner and outer cylindrical surface, conical surface, rotary forming surface, annular groove and end face.

CNC metal lathes can also be used to carry out thread, sphere, profiling, generally can be divided into single column and double column.The overall layout is compact and reasonable, easy maintenance and repair with high efficiency and high rigidity characteristics.The CNC metal lathes adopts closed full protection structure, easy operation.CNC metal lathes have a wide versatility in the machinery and technology manufacturing plant.

CNC Metal Lathes

Technical specification of Cheap Vertical Lathe Machine C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm

Recommend cheap vertical lathe machine in factory

Cheap Vertical Lathe Machine

Cheap Vertical Lathe Machine

Cheap Vertical Lathe Machine

Cheap Vertical Lathe Machine

Looking for ideal CNC Metal Lathes Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CNC Metal Lathes for Sale are quality guaranteed. We are China Origin Factory of Cheap Vertical Lathe Machine. If you have any question, please feel free to contact us.
